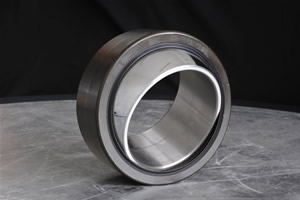

Spherical Plain Bearing


Type Dimension(mm) Load(KN) Weight(kg)
  d D B C dk R1s R2s α Dynamic Static
            min min C C0
GE6E 6 14 6 4 10 0.3 0.3 13 3.4 17 0.004
GE8E 8 16 8 5 13 0.3 0.3 15 5.5 27.5 0.007
GE10E 10 19 9 6 16 0.3 0.3 12 8.15 40.5 0.011
GE12E 12 22 10 7 18 0.3 0.3 11 10.8 54 0.016
GE15ES GE15ES2RS 15 26 12 9 22 0.3 0.3 8 17 85 0.025
GE16ES GE16ES2RS 16 30 14 10 25 0.3 0.3 10 21.2 106 0.041
GE17ES GE17ES2RS 17 30 14 10 25 0.3 0.3 10 21.2 106 0.041
GE20ES GE20ES2RS 20 35 16 12 29 0.6 0.3 9 30 146 0.061
GE25ES GE25ES2RS 25 42 20 16 35.5 0.6 0.6 7 48 240 0.11
GE30ES GE30ES2RS 30 47 22 18 40.7 0.6 0.6 6 62 310 0.14
GE35ES GE35ES2RS 35 55 25 20 47 0.6 1 6 80 400 0.22
GE40ES GE40ES2RS 40 62 28 22 53 0.6 1 7 100 500 0.3
GE45ES GE45ES2RS 45 68 32 25 60 0.6 1 7 127 640 0.4
GE50ES GE50ES2RS 50 75 35 28 66 0.6 1 6 156 780 0.54
GE60ES GE60ES2RS 60 90 44 36 80 1 1 6 245 1220 1
GE70ES GE70ES2RS 70 105 49 40 92 1 1 6 315 1560 1.5
GE80ES GE80ES2RS 80 120 55 45 105 1 1 6 400 2000 2.2
GE90ES GE90ES2RS 90 130 60 50 115 1 1 5 490 2450 2.7
GE100ES GE100ES2RS 100 150 70 55 130 1 1 7 610 3050 4.3
GE110ES GE110ES2RS 110 160 70 55 140 1 1 6 655 3250 4.7
GE120ES GE120ES2RS 120 180 85 70 160 1 1 6 950 4750 8
GE140ES GE140ES2RS 140 210 90 70 180 1 1 7 1080 5400 11
GE160ES GE160ES2RS 160 230 105 80 200 1 1 8 1360 6800 14
Type Dimension(mm) Load(KN) Weight(kg)
  d D B C dk R1s R2s α Dynamic Static
            min min C C0
GEG6E 6 16 9 5 13 0.3 0.3 21 5.5 27.5 0.008
GEG8E 8 19 11 6 16 0.3 0.3 21 8.15 40.5 0.014
GEG10E 10 22 12 7 18 0.3 0.3 18 10.8 54 0.02
GEG12E 12 26 15 9 22 0.3 0.3 18 17 85 0.034
GEG15ES GEG15ES2RS 15 30 16 10 25 0.3 0.3 16 21.2 106 0.046
GEG17ES GEG17ES2RS 17 35 20 12 29 0.3 0.3 19 30 146 0.078
GEG20ES GEG20ES2RS 20 42 25 16 35.5 0.6 0.6 17 48 240 0.15
GEG25ES GEG20ES2RS 25 47 28 18 40.7 0.6 1 17 62 310 0.19
GEG30ES GEG30ES2RS 30 55 32 20 47 0.6 1 17 80 400 0.29
GEG35ES GEG35ES2RS 35 62 35 22 53 0.6 1 16 100 500 0.39
GEG40ES GEG40ES2RS 40 68 40 25 60 0.6 1 17 127 640 0.52
GEG45ES GEG45ES2RS 45 75 43 28 66 0.6 1 15 156 780 0.68
GEG50ES GEG50ES2RS 50 90 56 36 80 0.6 1 17 245 1220 1.4
GEG60ES GEG60ES2RS 60 105 63 40 92 1 1 17 315 1560 2
GEG70ES GEG70ES2RS 70 120 70 45 105 1 1 16 400 2000 2.9
GEG80ES GEG80ES2RS 80 130 75 50 115 1 1 14 490 2450 3.5
GEG90ES GEG90ES2RS 90 150 85 55 130 1 1 15 610 3050 5.4
GEG100ES GEG100ES2RS 100 160 85 55 40 1 1 14 655 3250 5.9
GEG110ES GEG110ES2RS 110 180 100 70 160 1 1 11 950 4750 11
GEG120ES GEG120ES2RS 120 210 115 70 180 1 1 16 1080 5400 15
Type Dimension(mm) Load(KN) Weight(kg)
  d d2 D B C dk R1s R2s α Dynamic Static
              min min C C0
GE12LO 12 15.5 22 12 7 18 0.3 0.3 4 10 53 0.022
GE16LO 16 20 28 16 9 23 0.3 0.3 4 17 85 0.035
GE20LO 20 25 35 20 12 29 0.3 0.3 4 30 146 0.07
GE25LO 25 30 42 25 16 35.5 0.6 0.6 4 48 240 0.12
GE30LO 30 34 47 30 18 40 0.6 0.6 4 62 310 0.168
GE32LO 32 38 52 32 18 44 0.6 1 4 67 335 0.2
GE35LO 35 40 55 35 20 48 0.6 1 4 79 399 0.253
GE40LO 40 46 62 40 22 53 0.6 1 4 100 500 0.34
GE50LO 50 57 75 50 28 66 0.6 1 4 156 780 0.56
GE60LO 60 68 90 60 36 80 1 1 4 245 1220 1.15
GE63LO 63 71.5 95 63 36 83 1 1 4 255 1270 1.2
GE70LO 70 79 105 70 40 92 1 1 4 315 1560 1.7
GE80LO 80 91 120 80 45 105 1 1 4 400 2000 2.4
GE90LO 90 99 130 90 50 115 1 1 4 488 2440 3.2
GE100LO 100 113 150 100 55 130 1 1 4 607 3030 4.8
GE110LO 110 124 160 110 55 140 1 1 4 654 3270 5.78
GE125LO 125 138 180 125 70 160 1 1 4 950 4750 8.49
GE160LO 160 177 230 160 80 200 1 1 4 1370 6800 16.5
Type Dimension(mm) Load(KN) Weight(kg)
  d d2 D B C dk R1s R2s α Dynamic Static
              min min C C0
GE20HO2RS 20 24 35 24 12 29 0.2 0.3 3 30 146 0.057
GE25HO2RS 25 29 42 29 16 35.5 0.2 0.6 3 48 240 0.1
GE30HO2RS 30 34.2 47 30 18 40.7 0.2 0.6 3 62 310 0.14
GE35HO2RS 35 40 55 35 20 47 0.3 1 3 80 400 0.24
GE40HO2RS 40 45 62 38 22 53 0.3 1 3 100 500 0.29
GE45HO2RS 45 51.5 68 40 25 60 0.3 1 3 127 640 0.43
GE50HO2RS 50 56.5 75 43 28 66 0.3 1 3 156 780 0.54
GE60HO2RS 60 67.7 90 54 36 80 0.3 1 3 245 1220 1.1
GE70HO2RS 70 78 105 65 40 92 0.3 1 3 315 1560 1.6
GE80HO2RS 80 90 120 74 45 105 0.3 1 3 400 2000 2.4
Type Dimension(mm) Load(KN) Weight(kg)
  d D B C dk R1s R2s α Dynamic Static
            min min C C0
GEZ12ES 12.7 22.225 11.1 9.525 19 0.3 0.6 6 13 41 0.022
GEZ15ES 15.875 26.988 13.894 11.913 22 0.3 0.6 6 22 65 0.036
GEZ19ES 19.05 31.75 16.662 14.275 27.5 0.3 0.6 6 31 95 0.053
GEZ22ES 22.225 36.513 19.431 16.662 32 0.3 0.6 6 42 127 0.085
GEZ25ES GEZ25ES2RS 25.4 41.275 22.235 19.05 35.5 0.3 0.6 6 56 166 0.121
GEZ31ES GEZ31ES2RS 31.75 50.8 27.762 23.8 45.5 0.6 0.6 6 86 260 0.232
GEZ34ES GEZ34ES2RS 34.925 55.663 30.15 26.187 49 0.6 1 6 102 310 0.351
GEZ38ES GEZ38ES2RS 38.1 61.913 33.325 28.575 53 0.6 1 6 125 375 0.422
GEZ44ES GEZ44ES2RS 44.45 71.438 38.887 33.325 63.9 0.6 1 6 170 510 0.641
GEZ50ES GEZ50ES2RS 50.8 80.963 44.45 38.1 73 0.6 1 6 224 670 0.932
GEZ57ES GEZ57ES2RS 57.15 90.488 55.013 42.85 82 0.6 1 6 280 850 1.33
GEZ63ES GEZ63ES2RS 63.5 100.013 55.55 47.625 92 0.6 1 6 355 1060 1.85
GEZ69ES GEZ69ES2RS 69.85 111.125 61.112 52.375 100 1 1 6 415 1250 2.42
GEZ76ES GEZ76ES2RS 76.2 120.65 66.675 57.15 109.5 1 1 6 500 1500 3.1
GEZ82ES GEZ76ES2RS 82.55 130.175 72.238 61.9 120 1 1 6 585 1760 3.82
GEZ88ES GEZ88ES2RS 88.9 139.7 77.775 66.675 130 1 1 6 680 2040 4.79
GEZ95ES GEZ95ES2RS 95.25 149.225 83.337 71.425 137 1 1 6 780 2360 5.8
GEZ101ES GEZ101ES2RS 101.6 158.75 88.9 76.2 146 1 1 6 900 2650 7
GEZ114ES GEZ114ES2RS 114.3 177.8 100.013 85.725 64.5 1 1 6 1120 3400 9.8
GEZ120ES GEZ120ES2RS 120.65 187.325 105.562 90.475 173.5 1 1 6 1250 3750 11.5
Type Dimension(mm) Load(KN) Weight(kg)
  d D B C dk R1s R2s α Dynamic Static
            min min C C0
GEGZ31ES GEGZ31ES2RS 31.75 61.913 35.306 28.575 54.7 0.6 1 15 125 375 0.454
GEGZ38ES GEGZ38ES2RS 38.1 71.438 40.132 33.325 63.9 0.6 1 14 170 510 0.726
GEGZ44ES GEGZ44ES2RS 44.45 80.963 46.228 38.1 73 0.6 1 14 224 670 1.14
GEGZ50ES GEGZ50ES2RS 50.8 90.488 52.578 42.85 82 0.6 1 14 280 850 1.68
GEGZ57ES GEGZ57ES2RS 57.15 100.013 58.877 47.625 92 0.6 1 14 355 1060 2.01
GEGZ63ES GEGZ63ES2RS 63.5 11.125 64.643 52.375 100 1 1 14 415 1250 2.95
GEGZ69ES GEGZ69ES2RS 69.85 120.65 70.866 57.15 109.5 1 1 14 500 1500 3.63
GEGZ76ES GEGZ76ES2RS 76.2 130.175 76.759 61.9 119 1 1 14 585 1760 4.36
GEGZ82ES GEGZ82ES2RS 82.55 139.7 82.931 66.675 128 1 1 14 680 2040 5.31
GEGZ88ES GEGZ88ES2RS 88.9 149.225 90.424 71.425 137 1 1 14 780 2360 6.81
GEGZ95ES GEGZ95ES2RS 95.25 158.75 94.945 76.2 146 1 1 14 900 2650 8.85
GEGZ101ES GEGZ101ES2RS 101.6 117.8 107.315 85.725 164.5 1 1 10 1120 3400 10.2
Type Dimension(mm) Load(KN) Weight(kg)
  d D B C d1 dk R1s R2s α Dynamic Static
          min   min min C C0
GE6UK 6 14 6 4 8 10 0.3 0.3 13 3.6 9.1 0.004
GE8UK 8 16 8 5 10 13 0.3 0.3 15 5.8 14 0.008
GE10UK 10 19 9 6 13 16 0.3 0.3 12 8.6 21 0.011
GE12UK 12 22 10 7 15 18 0.3 0.3 10 11 28 0.015
GE15UK 15 26 12 9 18 22 0.3 0.3 8 18 45 0.027
GE17UK 17 30 14 10 20 25 0.3 0.3 10 22 56 0.041
GE20UK 20 35 16 12 24 29 0.3 0.3 9 31 78 0.066
GE25UK 25 42 20 16 29 35.5 0.6 0.6 7 51 127 0.119
GE30UK 30 47 22 18 34 40.7 0.6 0.6 6 65 166 0.163
Type Dimension(mm) Load(KN) Weight(kg)
  d D B C d1 dk R1s R2s α Dynamic Static
          min   min min C C0
GE15UK2RS 15 26 12 9 18 22 0.3 0.3 9 26 52 0.035
GE17UK2RS 17 30 14 10 20 25 0.3 0.3 10 30 60 0.041
GE20UK2RS 20 35 16 12 24 29 0.3 0.3 9 42 83 0.066
GE25UK2RS 25 42 20 16 29 35.5 0.6 0.6 7 68 137 0.119
GE30UK2RS 30 47 22 18 34 40.7 0.6 0.6 6 88 176 0.153
GE35UK2RS 35 55 25 20 39 47 0.6 1 6 112 224 0.233
GE40UK2RS 40 62 28 22 45 53 0.6 1 7 140 280 0.306
GE45UK2RS 45 68 32 25 50 60 0.6 1 7 180 360 0.427
GE50UK2RS 50 75 35 28 55 66 0.6 1 6 220 440 0.546
GE60UK2RS 60 90 44 36 66 74 1 1 6 345 695 1.04
GE70UK2RS 70 105 49 40 77 80 1 1 6 440 880 1.55
GE80UK2RS 80 120 55 45 88 92 1 1 6 567 1140 2.31
GE90UK2RS 90 130 60 50 98 105 1 1 5 690 1370 2.75
GE100UK2RS 100 150 70 55 109 115 1 1 7 858 1730 4.45
GE110UK2RS 110 160 70 55 120 130 1 1 6 924 1860 4.82
GE120UK2RS 120 180 85 70 130 140 1 1 6 1340 2700 8.05
Type Dimension(mm) Load(KN) Weight(kg)
  d D B C dk R1s R2s α Dynamic Static
            min min C C0
GE6FW 6 16 9 5 13 0.3 0.3 21 5.8 14 0.008
GE8FW 8 19 11 6 16 0.3 0.3 21 8.6 21 0.014
GE10FW 10 22 12 7 18 0.3 0.3 18 11 28 0.021
GE12FW 12 26 15 9 22 0.3 0.3 18 18 45 0.033
GE15FW 15 30 16 10 25 0.3 0.3 16 22 56 0.049
GE17FW 17 35 20 12 29 0.3 0.3 19 31 78 0.083
GE20FW 20 42 25 16 35.5 0.3 0.3 17 51 127 0.153
GE25FW 25 47 28 18 40.7 0.6 0.6 17 65 166 0.203
GE30FW 30 55 32 20 47 0.6 0.6 17 83 212 0.304
Type Dimension(mm) Load(KN) Weight(kg)
  d D B C dk R1s R2s α Dynamic Static
            min min C C0
GE15FW2RS 15 30 16 10 25 0.3 0.3 16 22.4 56 0.046
GE17FW2RS 17 35 20 12 29 0.3 0.3 19 31.5 78 0.078
GE20FW2RS 20 42 25 16 35.5 0.6 0.6 17 51 127 0.15
GE25FW2RS 25 47 28 18 40.7 0.6 0.6 17 65.5 166 0.19
GE30FW2RS 30 55 32 20 47 0.6 1 17 112 224 0.29
GE35FW2RS 35 62 35 22 53 0.6 1 16 140 280 0.39
GE40FW2RS 40 68 40 25 60 0.6 1 17 180 360 0.52
GE45FW2RS 45 75 43 28 66 0.6 1 15 220 440 0.68
GE50FW2RS 50 90 56 36 80 0.6 1 17 345 695 1.4
GE60FW2RS 60 105 63 40 92 1 1 17 440 880 2
GE70FW2RS 70 120 70 45 105 1 1 16 570 1140 2.9
GE80FW2RS 80 130 75 50 115 1 1 14 695 1370 3.5
GE90FW2RS 90 150 85 55 130 1 1 15 865 1730 5.4
GE100FW2RS 100 160 85 55 140 1 1 14 930 1860 5.9
